Specifications: Dynamic Power
Regeneration supplies power to the power supply while coasting downhill,
on level ground, or braking whenever power is not being consumed by the motor.
|
|

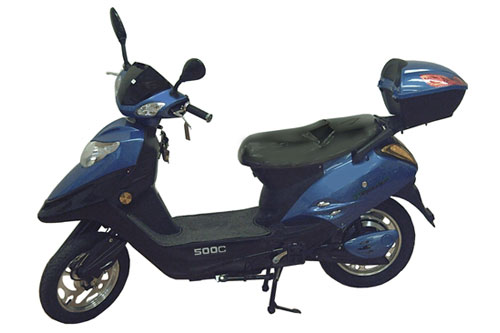

Model: Low Power Electric Bicycle
|
Brake System: Front/Rear cushioned automotive drum*
|
Electric Motor: 500W/48V Brushless DC PWM 3-phase
|
Stopping Distance: <8'@19mph (<2.5m@30km/h)*
|
Torque/RPM: Max. 19.5Nm@290rpm-7.2Nm@520rpm
|
Safety Features: Right/Left rear view mirrors, horn
|
Magnet Assembly: Neodymium/Boron (NIB)
|
Lights: headlight, tail light, turn signals, wheel reflectors
|
Battery Type: UL Listed VRLA Spill Proof Colloidal Sealed
|
Anti-theft Alarm: High level audible signal with remote
|
Battery Supply: 4 x 20Ah @ 5 hr. rate
|
Rear Wheel/Motor Digital Lock (disables all functions)
|
Power Supply Wt.: 62 lbs ( 28kgs)
|
Load Capacity: 330 lbs (150 kgs)*
|
Recharge Times: >400@80% discharge rate
|
Compliance: CPSC, CMVSA, UL, CE, CCC
|
Charger: 48VDC/1.8A Smart Charger, CE type listed
|
Vehicle size: 70"L x 25"W x 45H" (178 x 64 x 114cm)
|
Dynamic Power Regeneration
|
Seat Height: 31.5" (80cm)
|
Rim Diameter: 16” (456mm)
|
Carton size: 71"L x 19"W x 34"H (179 x 47 x 86cm)
|
Tires: 16x3.0 Rubber/Nylon O.D. 17.75 in. (45 cm)
|
Net Vehicle Wt.: 106 lbs ( kgs) without Power supply
|
Speed: Max. 20 mph (32 km/h)
|
Gross Vehicle Wt.: 167 lbs (76 kg) w/Power supply
|
Range:=>50 miles@12mph (=>80km@18km/h)
|
Shipping Wt: 121 lbs (55kgs) (PSU shipped separately)
|
Degree of Climb: 20o grade
|
Shipping Wt. : 48V20Ah PSU): 63 lbs ( 28.5kgs)
|
